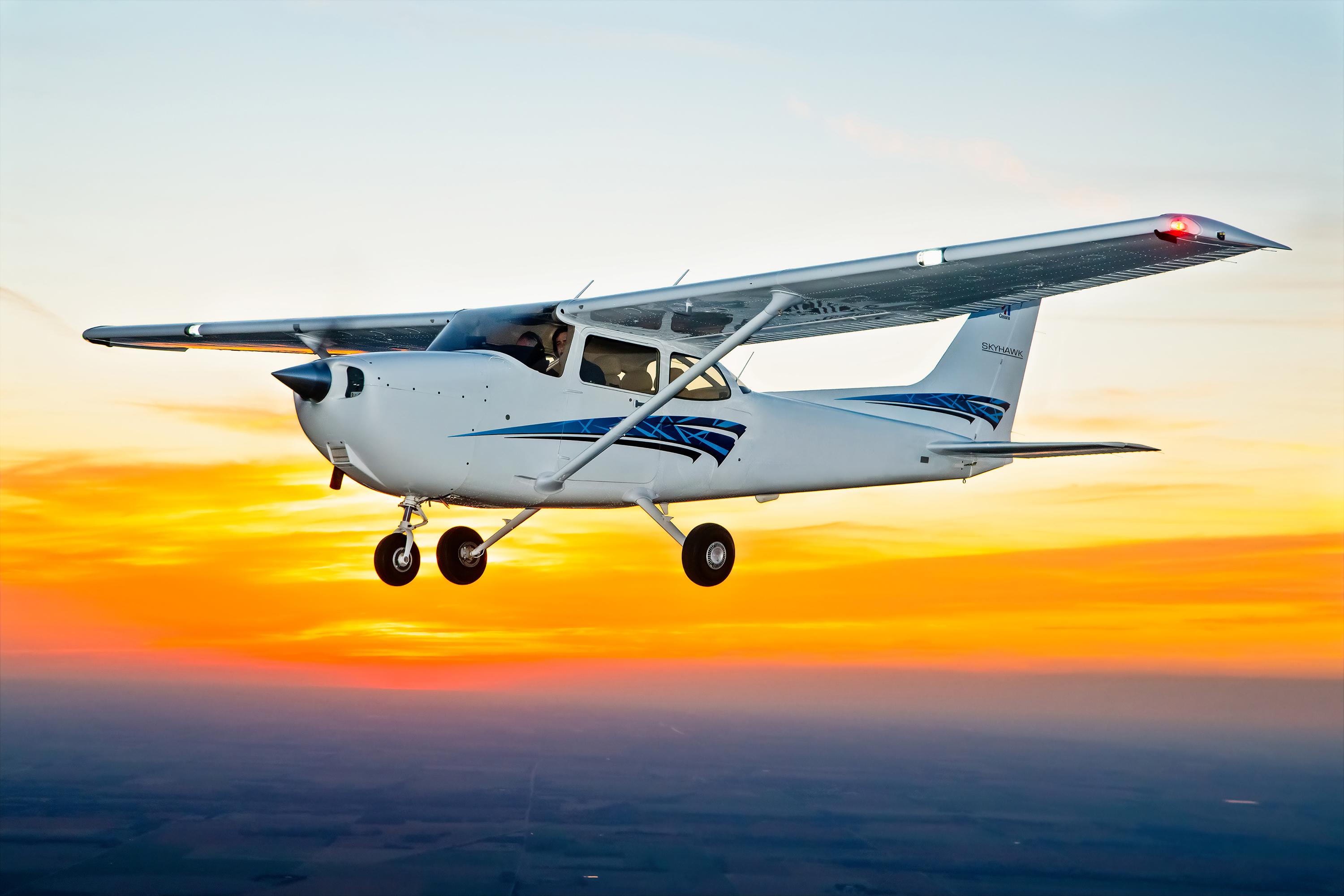

Blur BackgroundAircraft Background

Skyhawk

MAXIMUM RANGE
MAXIMUM RANGE640 nm
MAXIMUM CRUISE SPEED
MAXIMUM CRUISE SPEED124 ktas
MAXIMUM OCCUPANTS
MAXIMUM OCCUPANTS4
USEFUL LOAD
USEFUL LOAD878 lb
TAKEOFF FIELD LENGTH
TAKEOFF FIELD LENGTH1630 ft

The Ultimate Training Aircraft

Nothing is more liberating than learning to fly. The Cessna® Skyhawk® piston is the most popular single-engine aircraft ever built and has achieved a reputation for being the ultimate training aircraft.

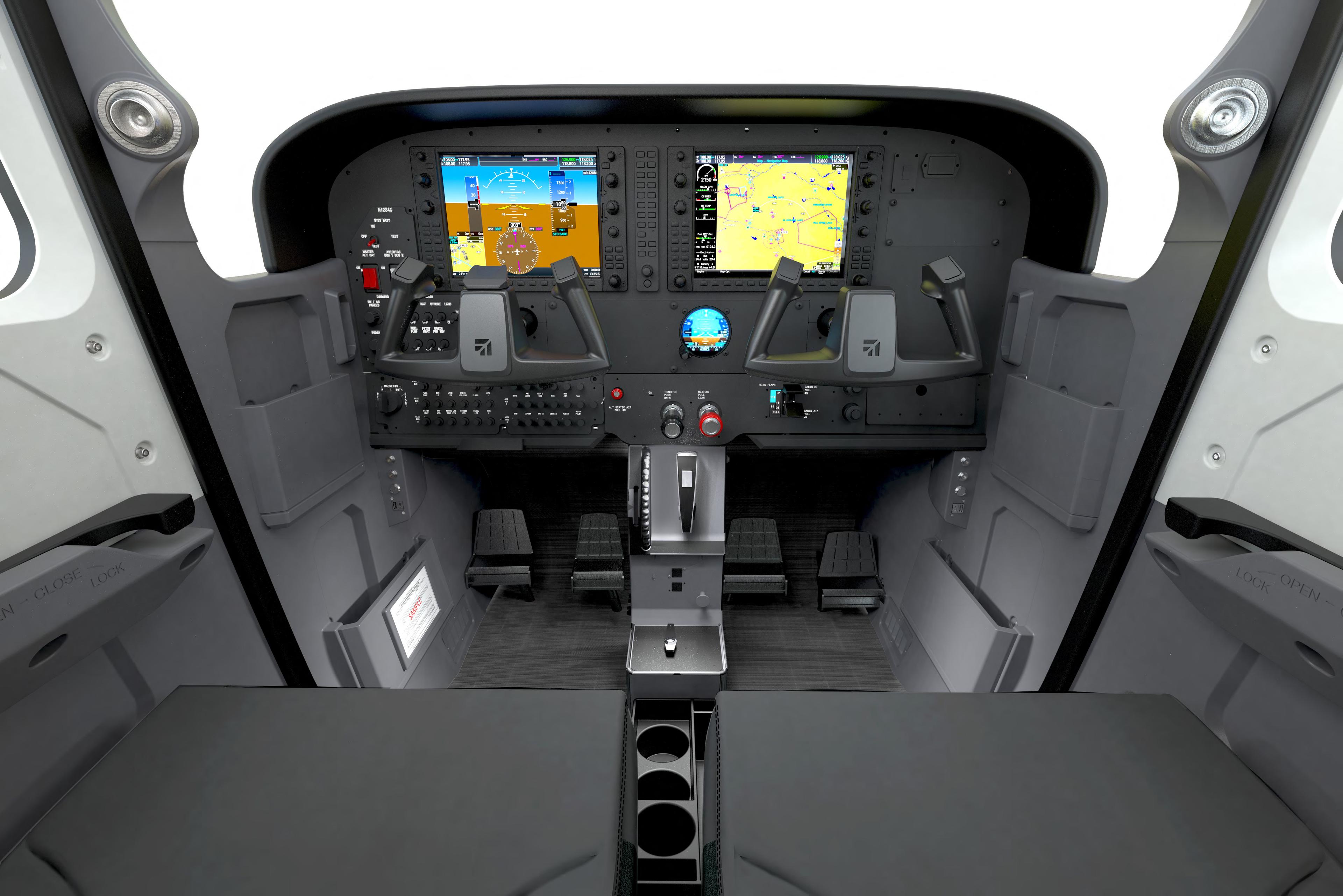

With simplistic flight characteristics, great visibility and a sophisticated glass cockpit outfitted with Garmin® G1000® avionics, the Cessna® Skyhawk® piston boasts a slow landing speed and a lenient stall. These characteristics make it a flight training favorite ideally suited for student pilots and it’s perfectly designed to help you soar.

Now with new interiors, these adventurous pistons provide you style and comfort, while emphasizing durability.

Download brochure
View
Range Map

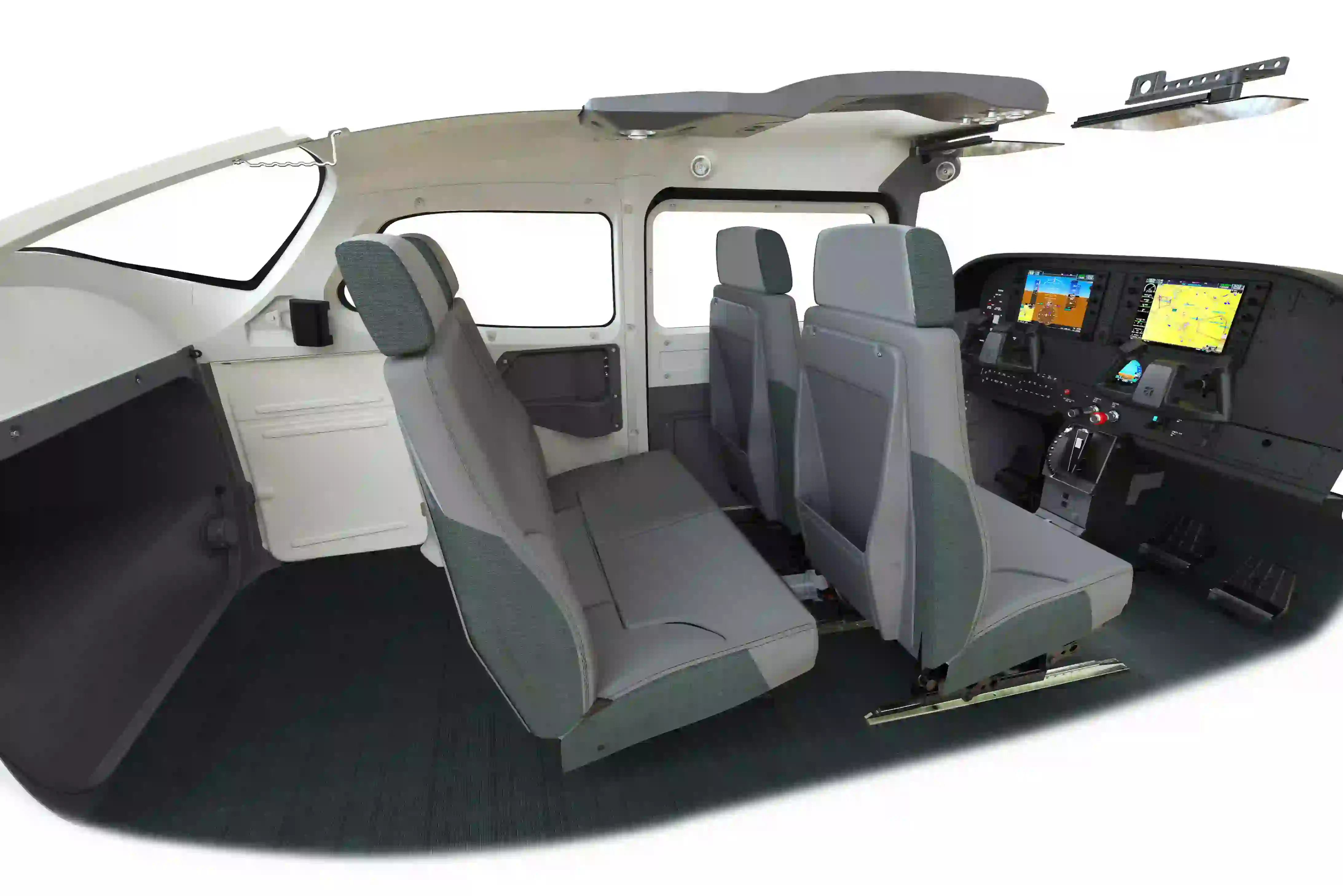

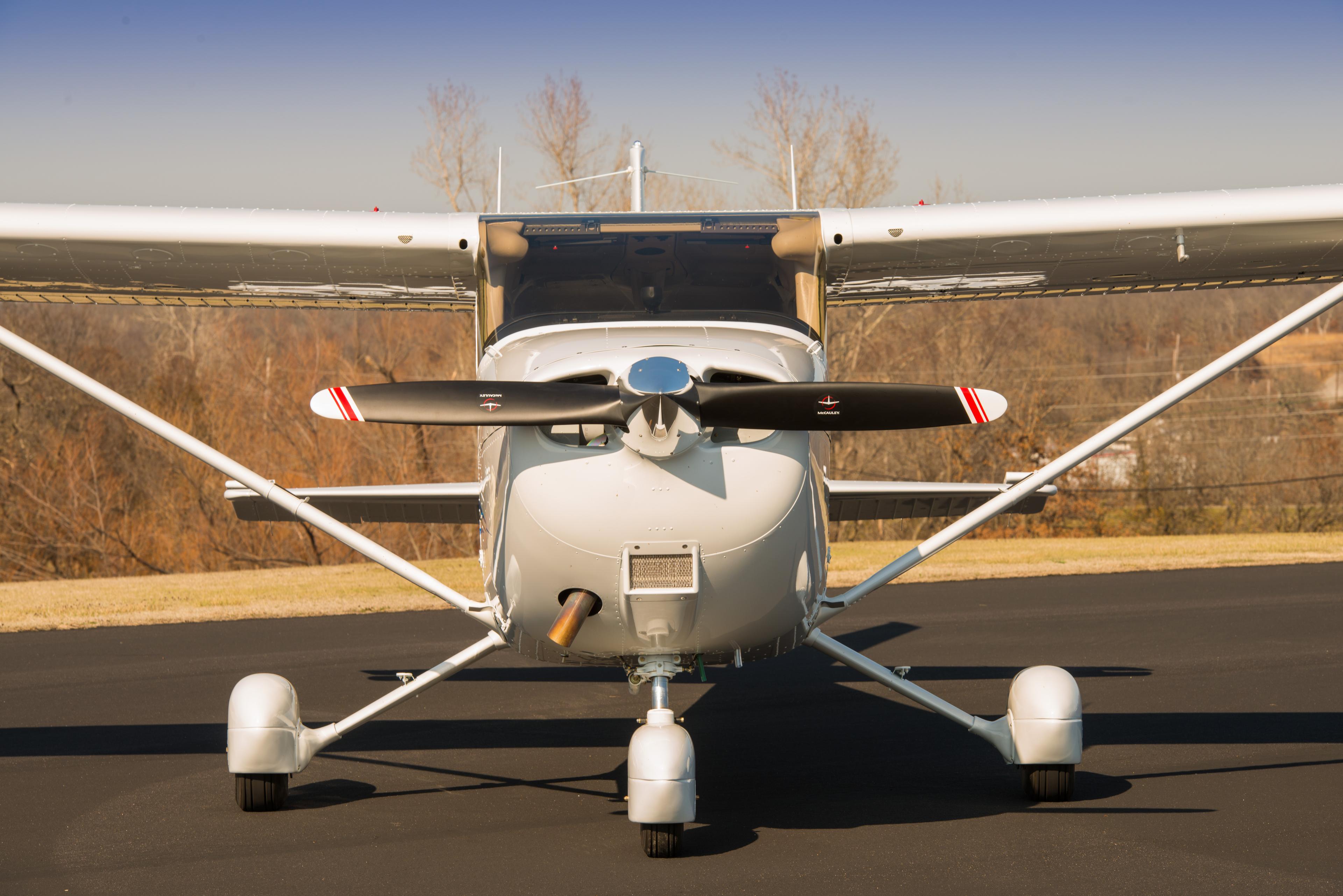

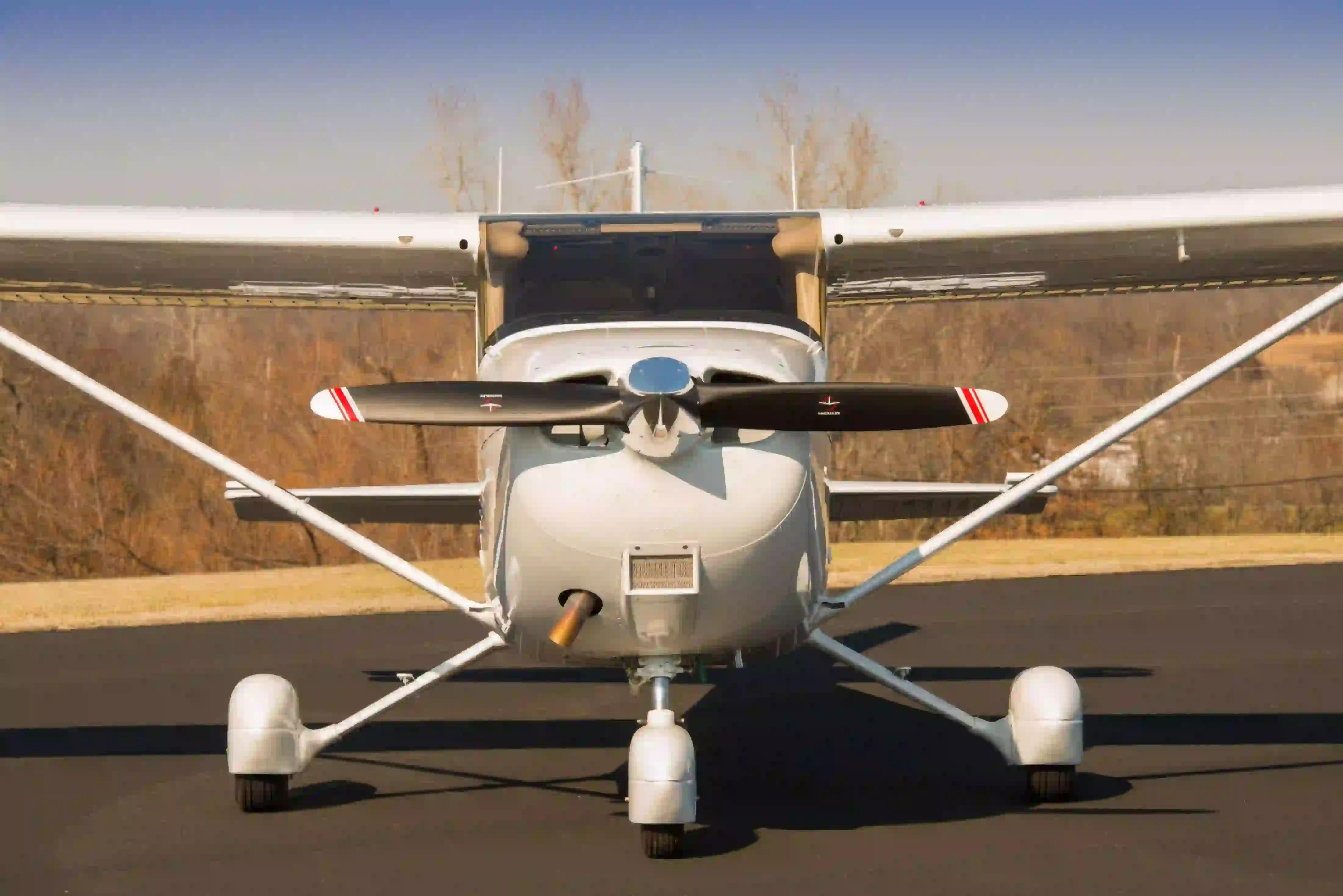

EASY ACCESS-blurEASY ACCESS

EASY ACCESS

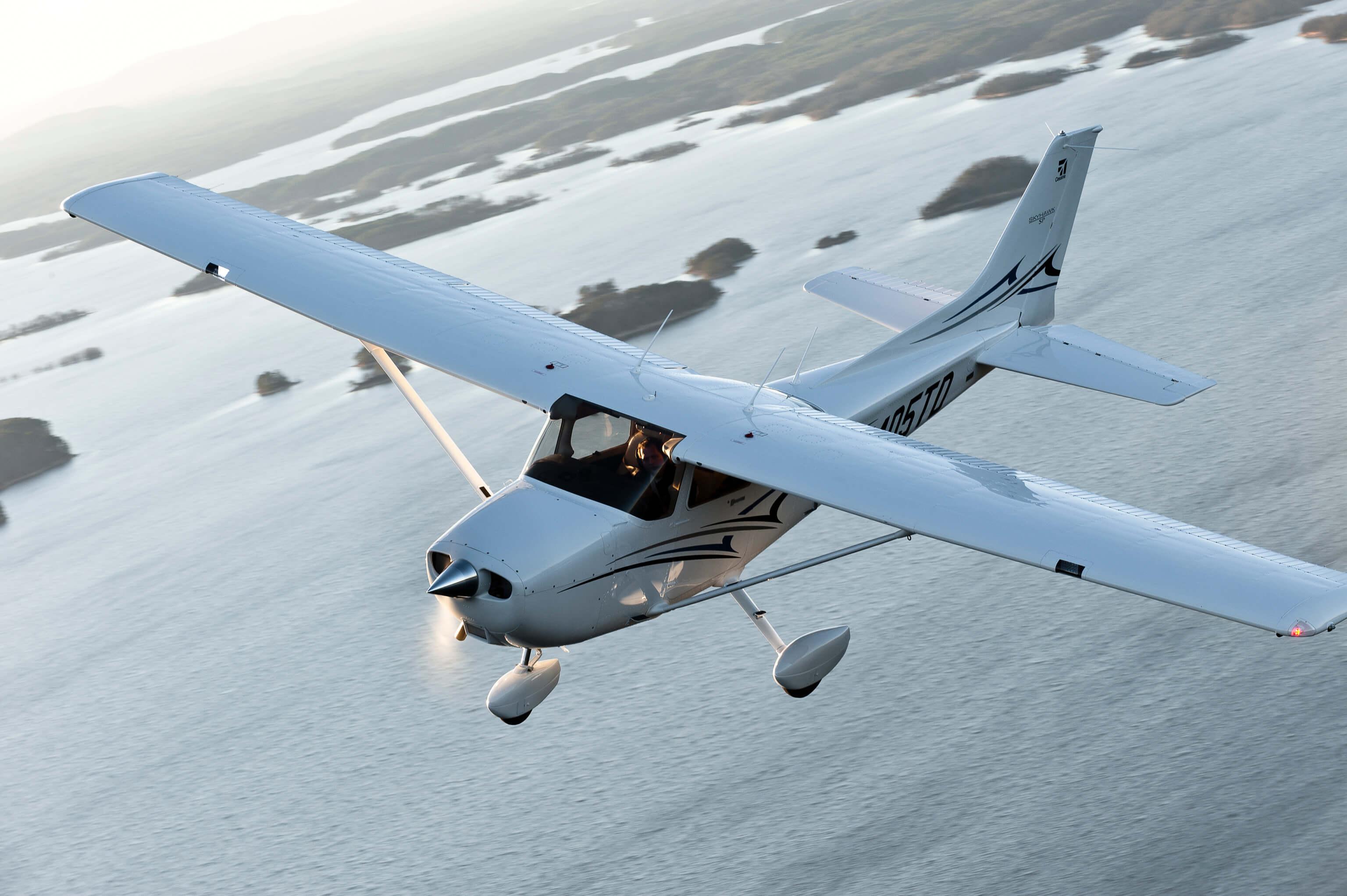

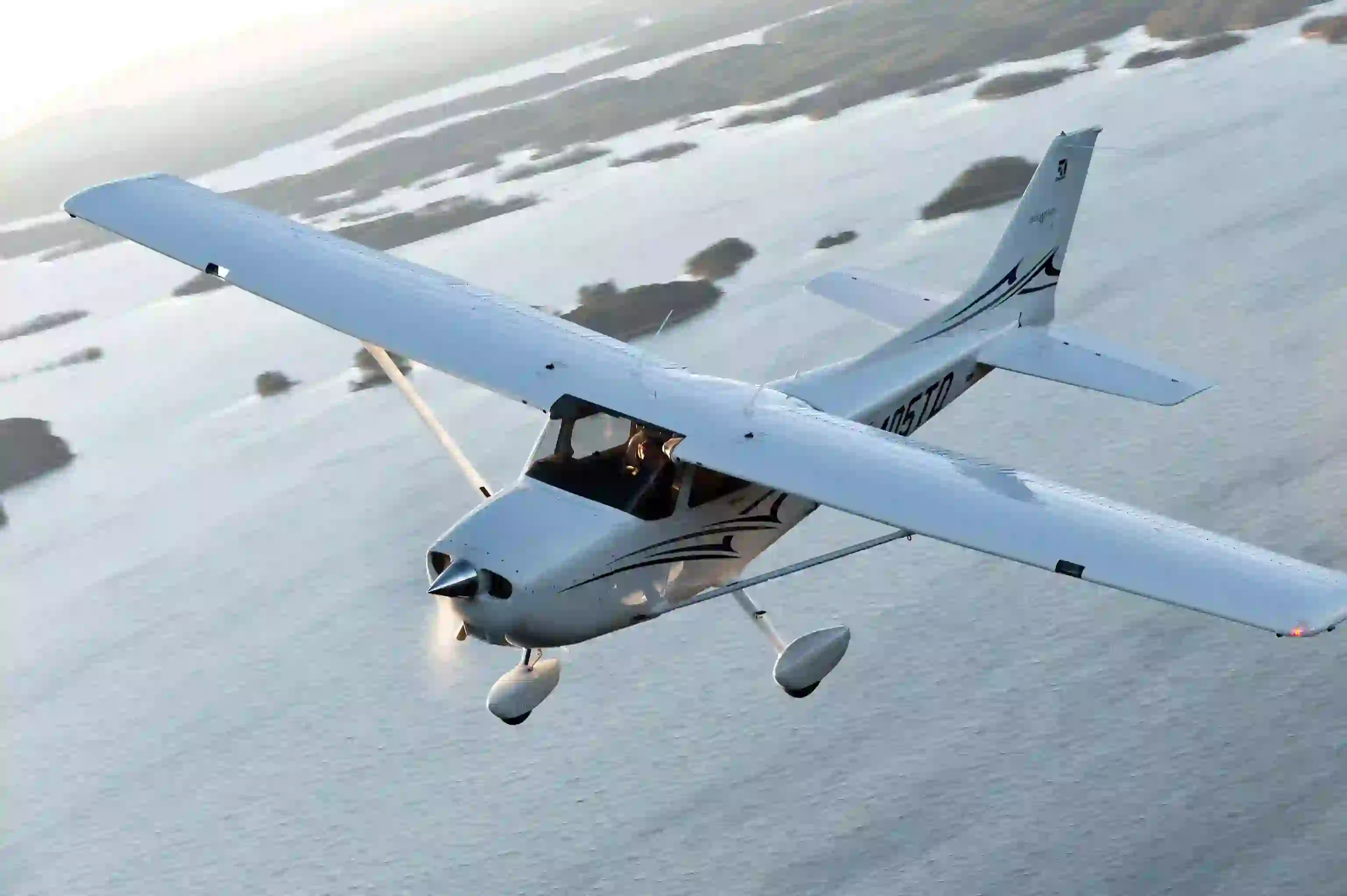

WINGS DESIGNED FOR THE STUDENT-blurWINGS DESIGNED FOR THE STUDENT

WINGS DESIGNED FOR THE STUDENT

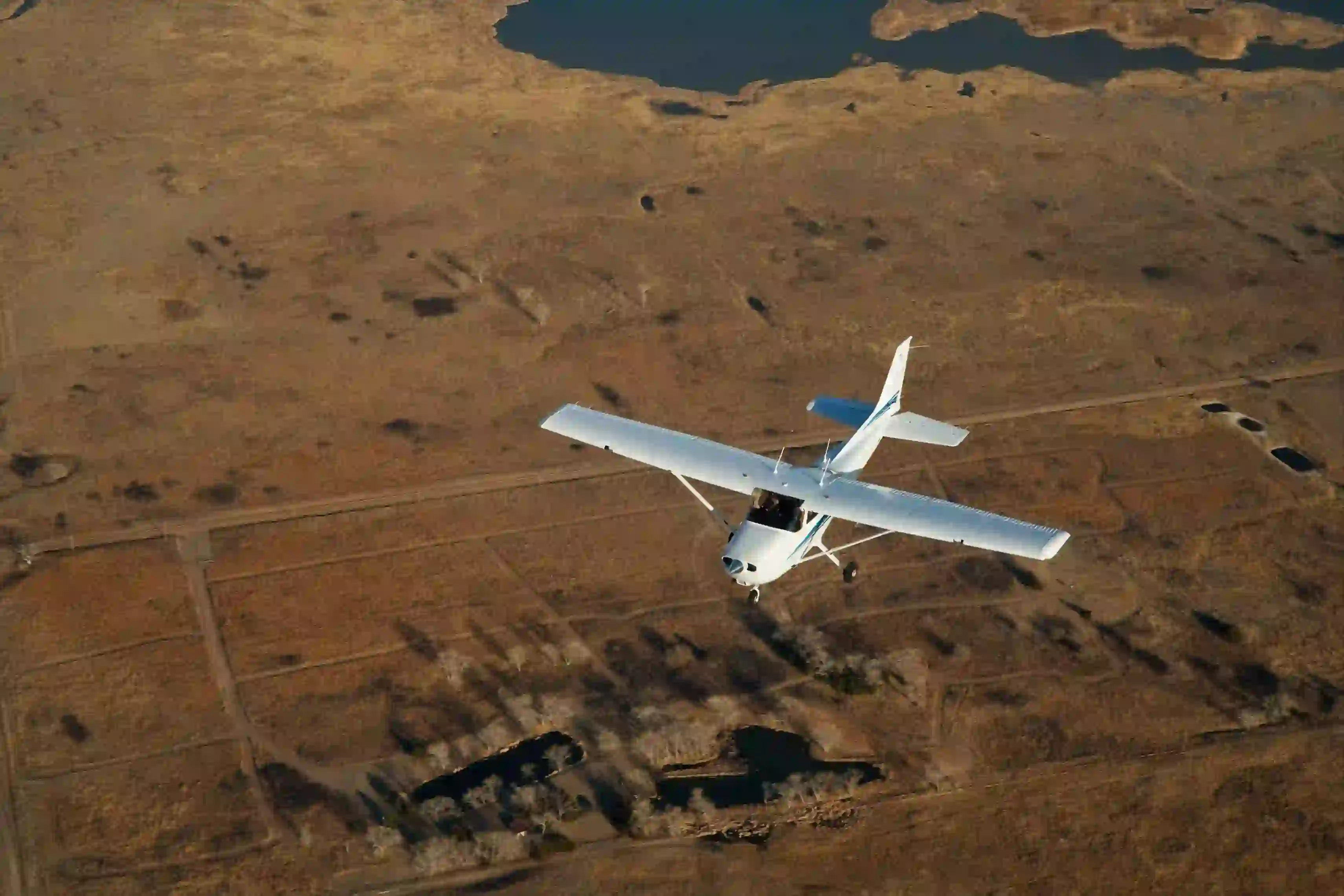

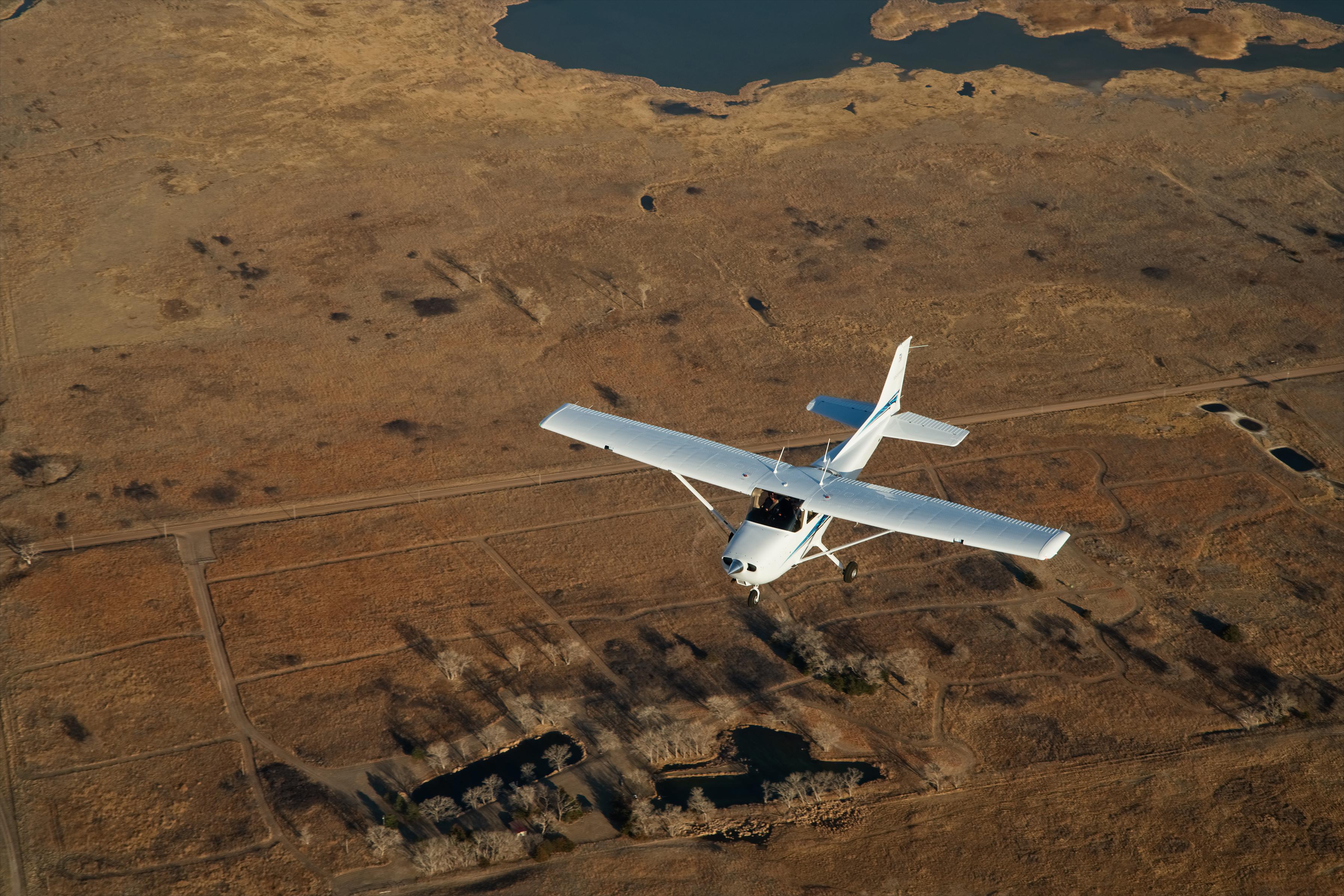

ECONOMICAL POWER-blurECONOMICAL POWER

ECONOMICAL POWER

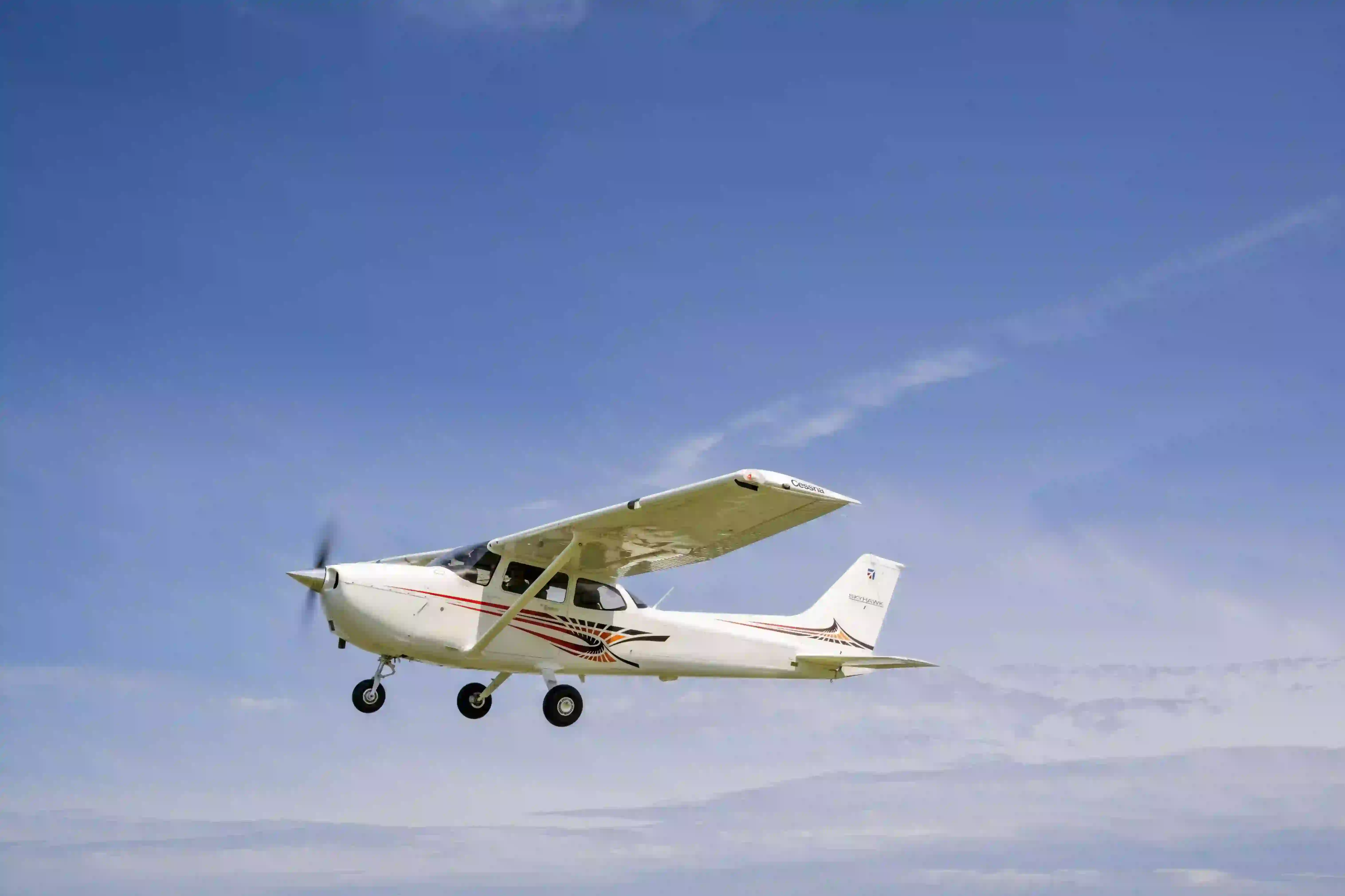

BUILT FOR TRAINING-blurBUILT FOR TRAINING

BUILT FOR TRAINING

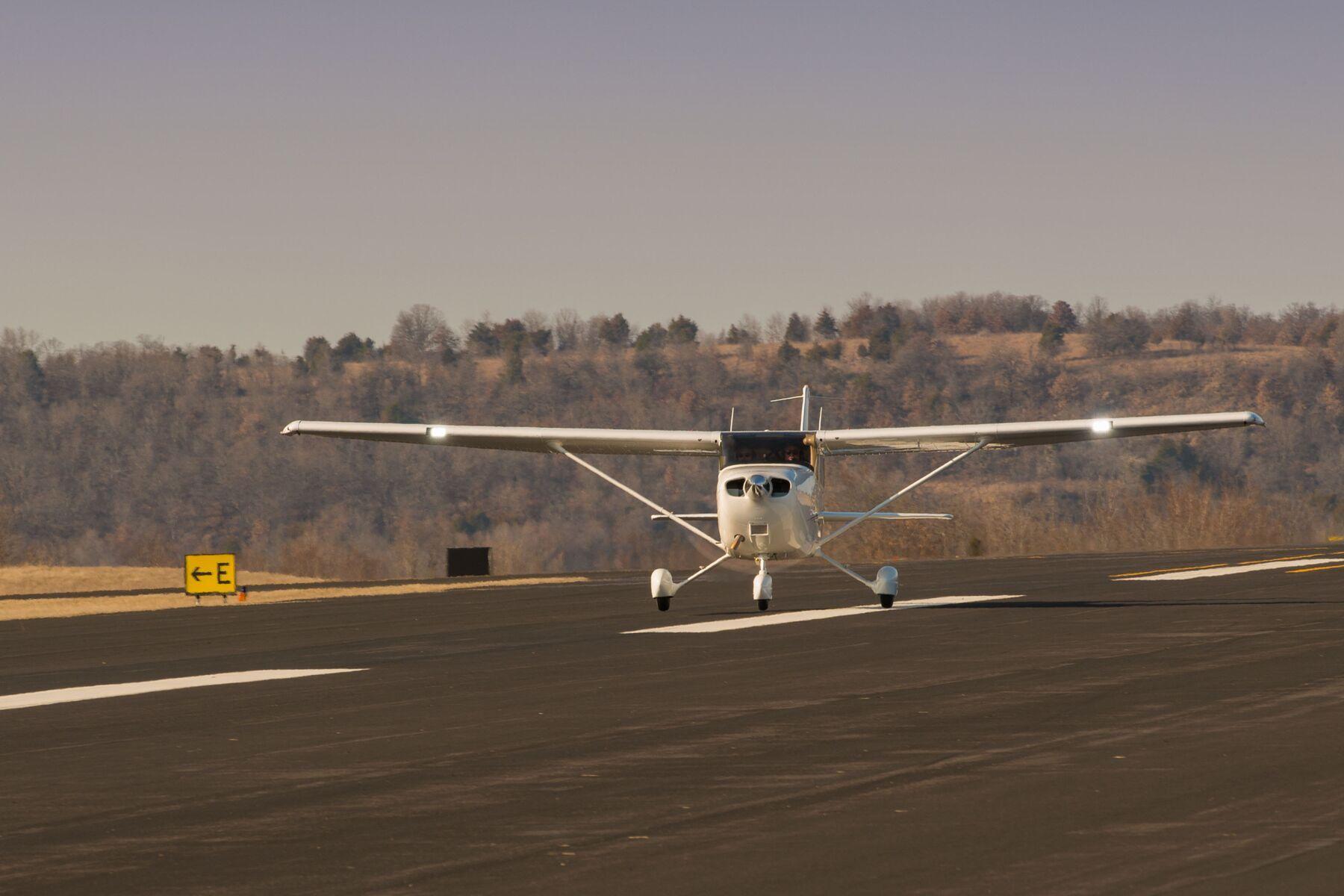

ENHANCED VISIBILITY LED-blurENHANCED VISIBILITY LED

ENHANCED VISIBILITY LED

-blur
EASY ACCESS-blurEASY ACCESS
WINGS DESIGNED FOR THE STUDENT-blurWINGS DESIGNED FOR THE STUDENT
ECONOMICAL POWER-blurECONOMICAL POWER
BUILT FOR TRAINING-blurBUILT FOR TRAINING
ENHANCED VISIBILITY LED-blurENHANCED VISIBILITY LED
-blur
Play Video

Interior Tour

Play Video

Exterior Tour

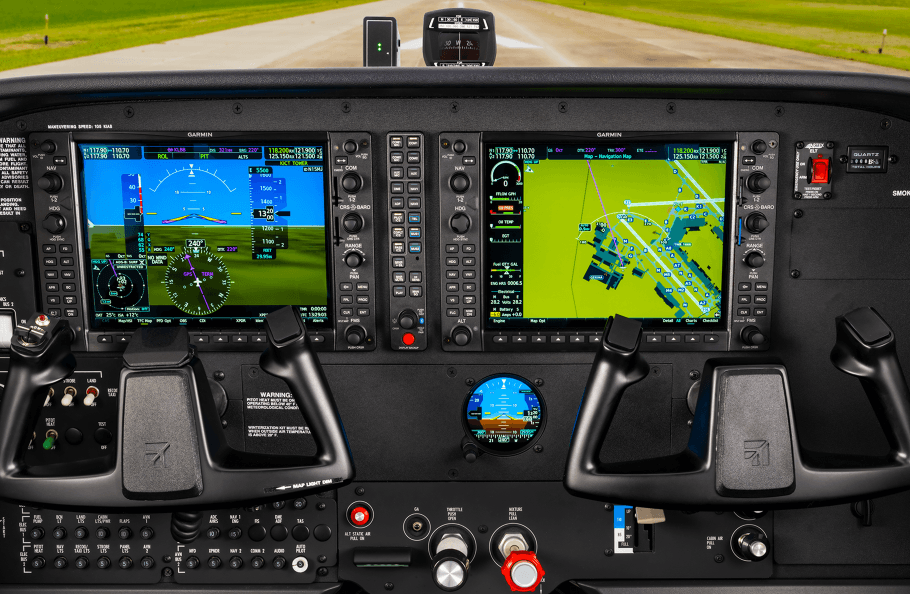

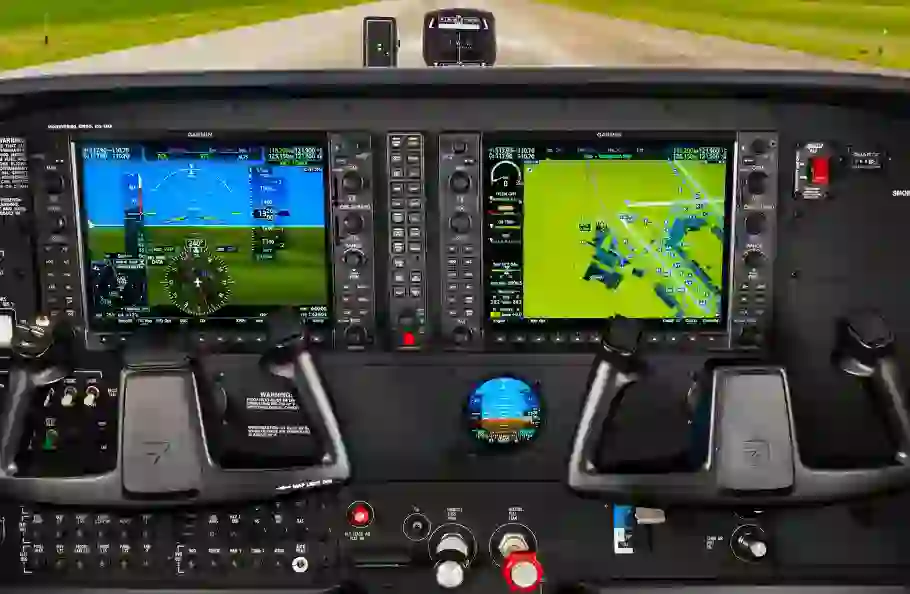

STANDARD FEATURES-blurSTANDARD FEATURES

STANDARD FEATURES

  • ADS-B out and in

  • Wireless data base and flight plan loading

  • Integrated VFR sectional charts

  • IFR high and low charts with Night Mode

  • COM frequency decoding

  • Vertical Situation Display

  • Selectable visual approaches

aerospares-bluraerospares

SPECIFICATION

DIMENSIONS

  • Length
  • Height
  • Wingspan
  • Wing Area
  • 27 ft 2 in (8.3 m)
  • 8 ft 11 in (2.7 m)
  • 36 ft 1 in (11.00 m)
  • 174 sq ft (16.17 sq m)

BAGGAGE CAPACITY

  • Weight
  • Volume
  • 120 lb (54 kg)
  • 30 cu ft (0.85 cu m)

WEIGHTS

  • Maximum Ramp Weight
  • Maximum Takeoff Weight
  • Maximum Landing Weight
  • Usable Fuel Weight
  • Usable Fuel Volume
  • Basic Empty Weight
  • Useful Load
  • Maximum Payload
  • Full Fuel Payload
  • 2,558 lb (1,160 kg)
  • 2,550 lb (1,157 kg)
  • 2,550 lb (1,157 kg)
  • 318 lb (144 kg)
  • 53 gal (201 l)
  • 1,680 lb (762 kg)
  • 878 lb (398 kg)
  • 870 lb (395 kg)
  • 560 lb (254 kg)

PERFORMANCE

  • Maximum Cruise Speed
  • Maximum Range
  • Takeoff Distance
  • Ground Roll
  • Landing Distance
  • Ground Roll
  • Service Ceiling
  • Maximum Climb Rate
  • Maximum Limit Speed
  • Stall Speed
  • 124 ktas (230 km/h)
  • 640 nm (1,185 km)
  • 1,630 ft (497 m)
  • 960 ft (293 m)
  • 1,335 ft (407 m)
  • 575 ft (175 m)
  • 14,000 ft (4,267 m)
  • 730 fpm (223 mpm)
  • 163 kias (302 km/h)
  • 48 kcas (89 km/h)

CABIN INTERIOR

  • Height
  • Width
  • Length
  • Maximum Occupants
  • 48 in (1.2 m)
  • 40 in (1.00 m)
  • 11 ft 10 in (3.6 m)
  • 4

POWERPLANT

  • Manufacturer
  • Model
  • Power Output
  • Propeller
  • Description
  • Lycoming
  • IO-360-L2A
  • 180 hp (180 hp)
  • McCauley
  • 2 blade metal, fixed pitch

NEW FEATURES AND OPTIONS

  • LEMO Plug – Powered headset plug at each seat location.

  • Additional USB power outlets - A and C USB port at each seat location.

  • Cup holders on the sidewall for second row. No change to cockpit.

  • Colors and materials – including Pinstripe Gray and Denali Silver.

  • Two Side pockets on side wall at the pilot and copilot location.

  • POH pocket built into lower back of pilot and copilot seat.

  • Update control yoke emblem to black with Cessna logo.

  • Flooring material with edge stitching which eliminates the edging material.
