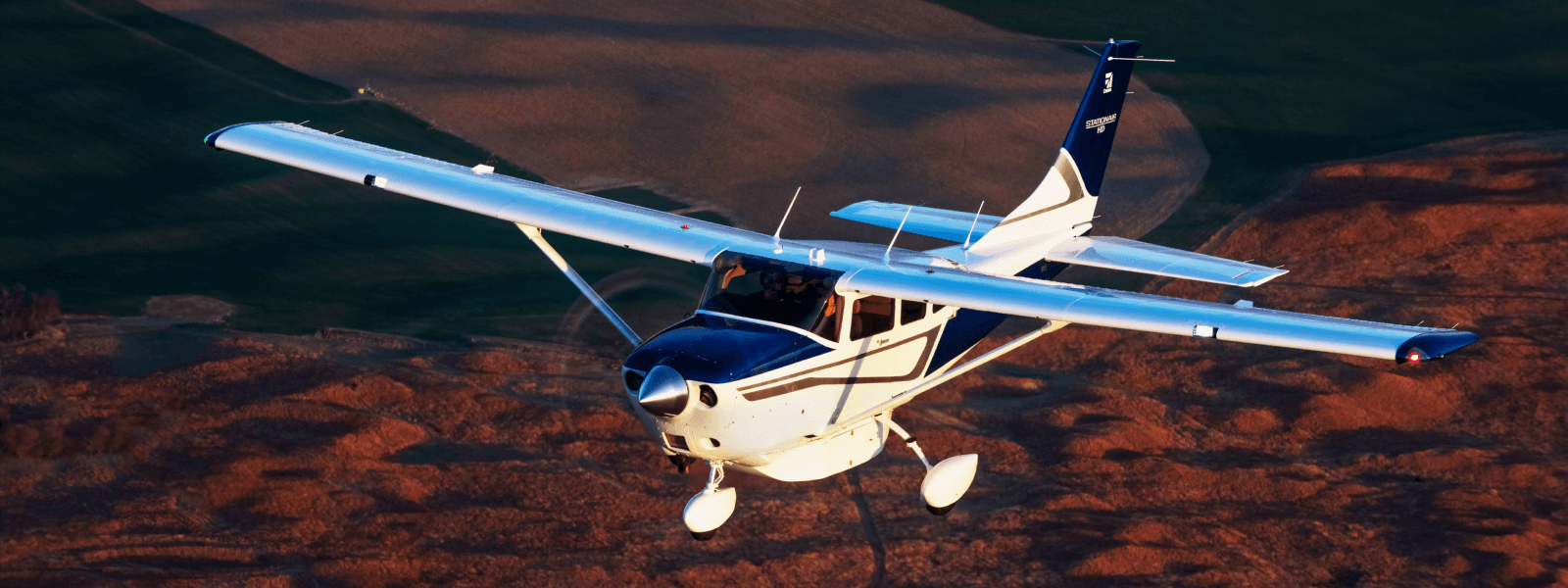

Blur BackgroundAircraft Background

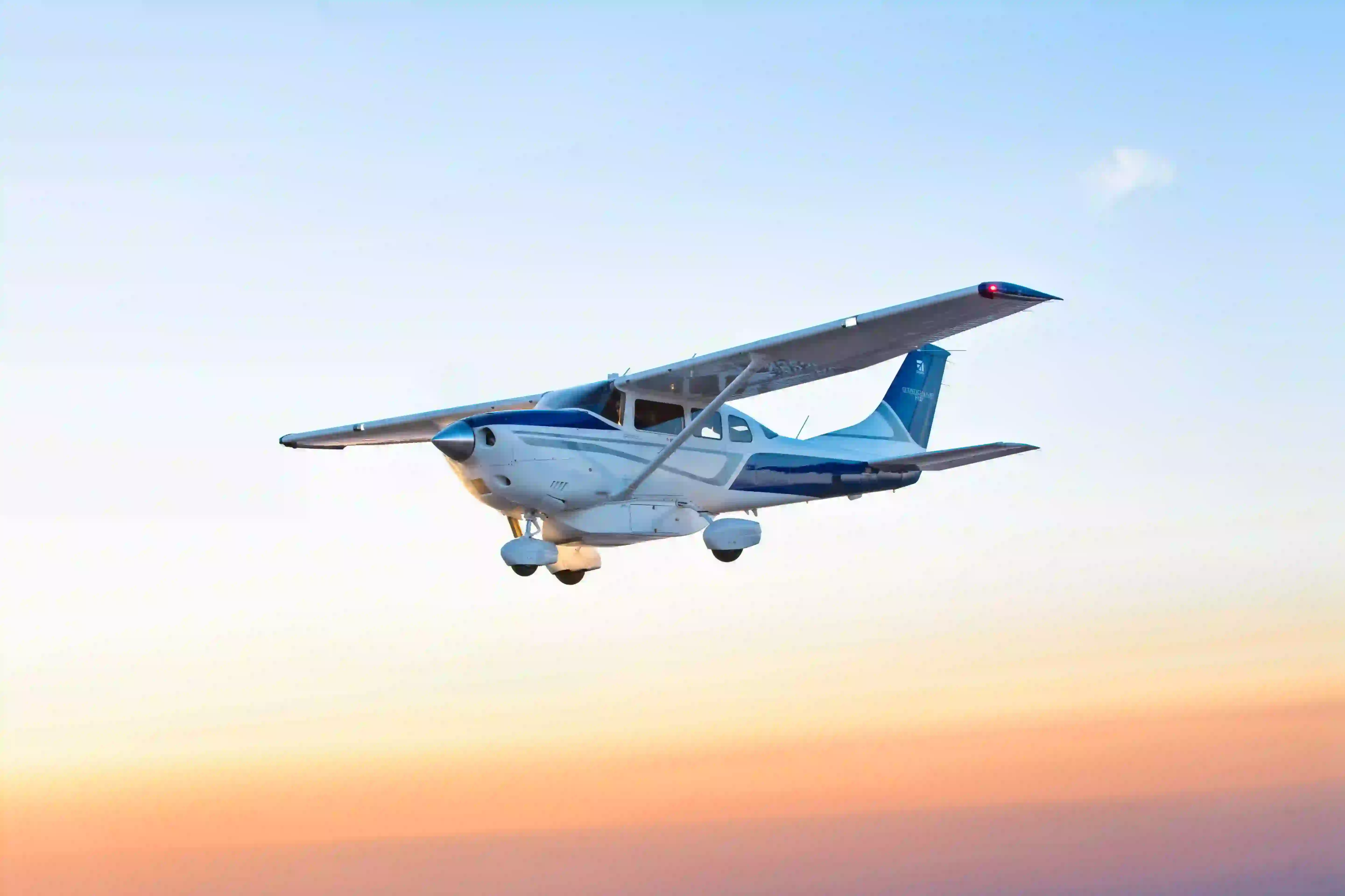

Turbo Stationair HD

MAXIMUM RANGE
MAXIMUM RANGE703 nm
MAXIMUM CRUISE SPEED
MAXIMUM CRUISE SPEED161 ktas
MAXIMUM OCCUPANTS
MAXIMUM OCCUPANTS6
USEFUL LOAD
USEFUL LOAD1441 lb
TAKEOFF FIELD LENGTH
TAKEOFF FIELD LENGTH1970 ft

Equal Parts Utility and Comfort

Whether commuting with five passengers, loading gear through the dual aft cargo doors, landing on a short dirt airstrip or splashing in at a remote lake on amphibious floats, the turbocharged capability of the Cessna® Turbo Stationair® HD piston is designed to fit your mission needs. Pushing the limits of what’s possible, the Turbo Stationair® HD aircraft doesn't make you choose between utility and comfort—it expands your horizons to take your adventure almost anywhere.

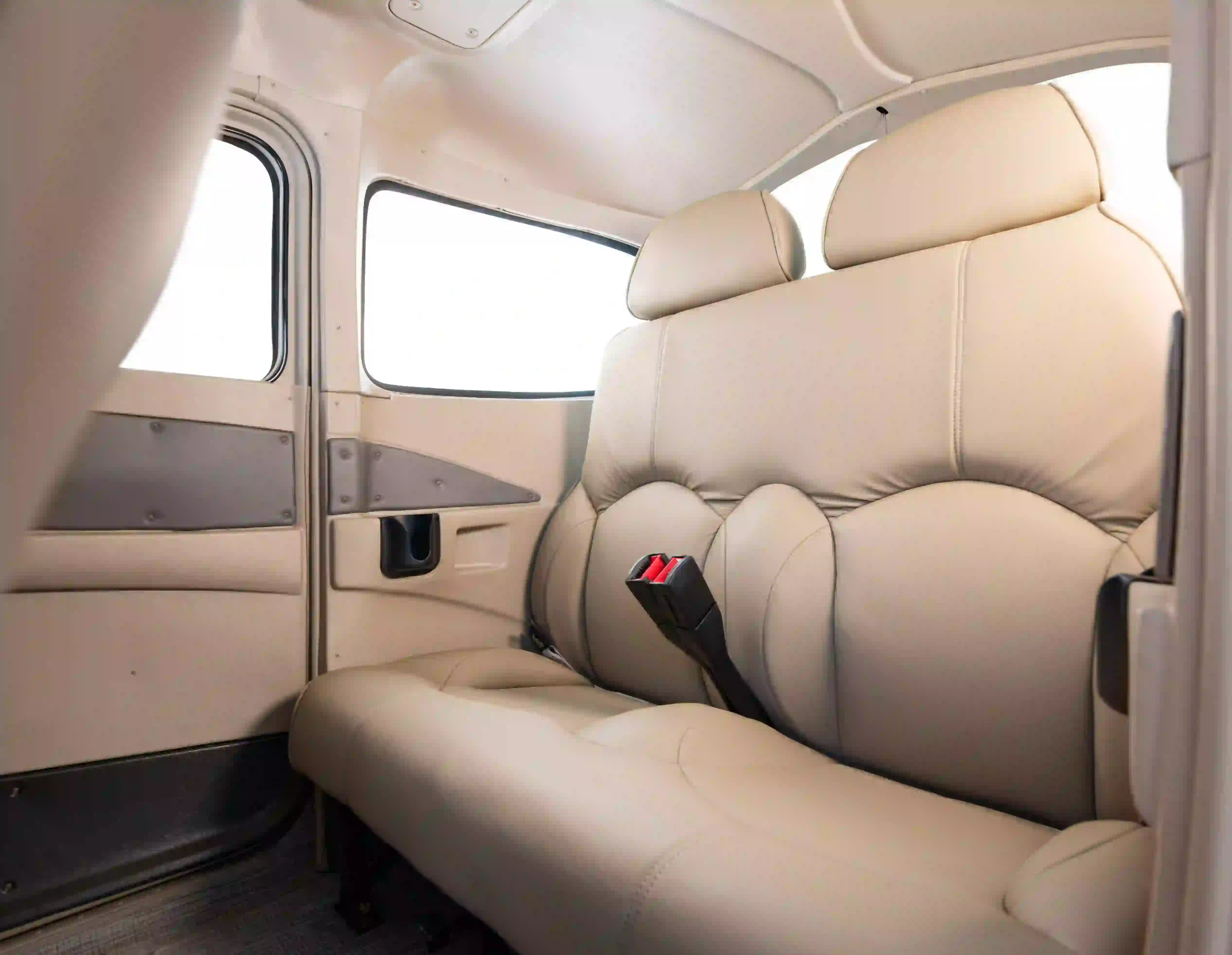

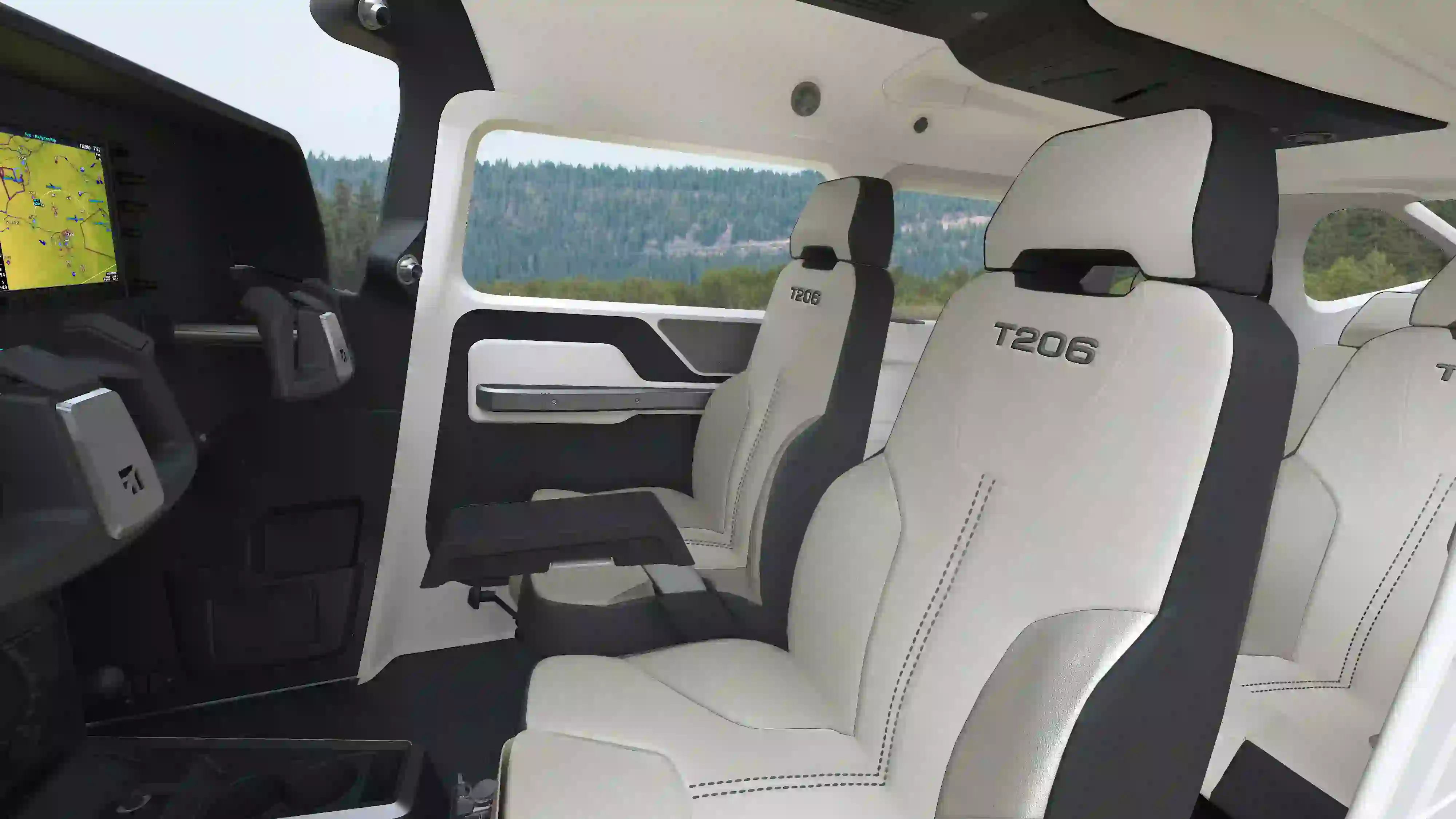

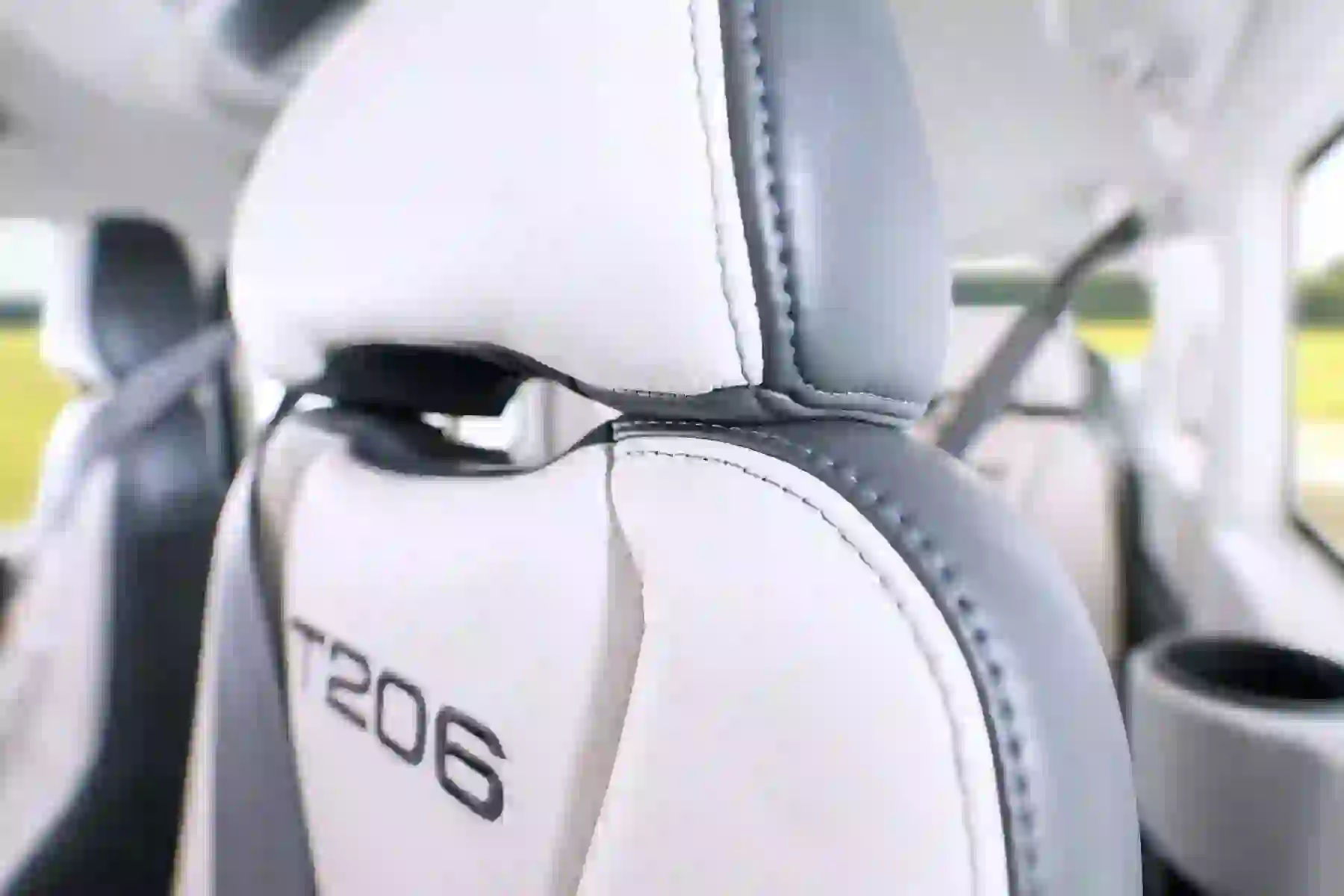

Now with new interiors, these adventurous pistons provide you style and comfort, while emphasizing durability.

Download brochure
View
Range Map

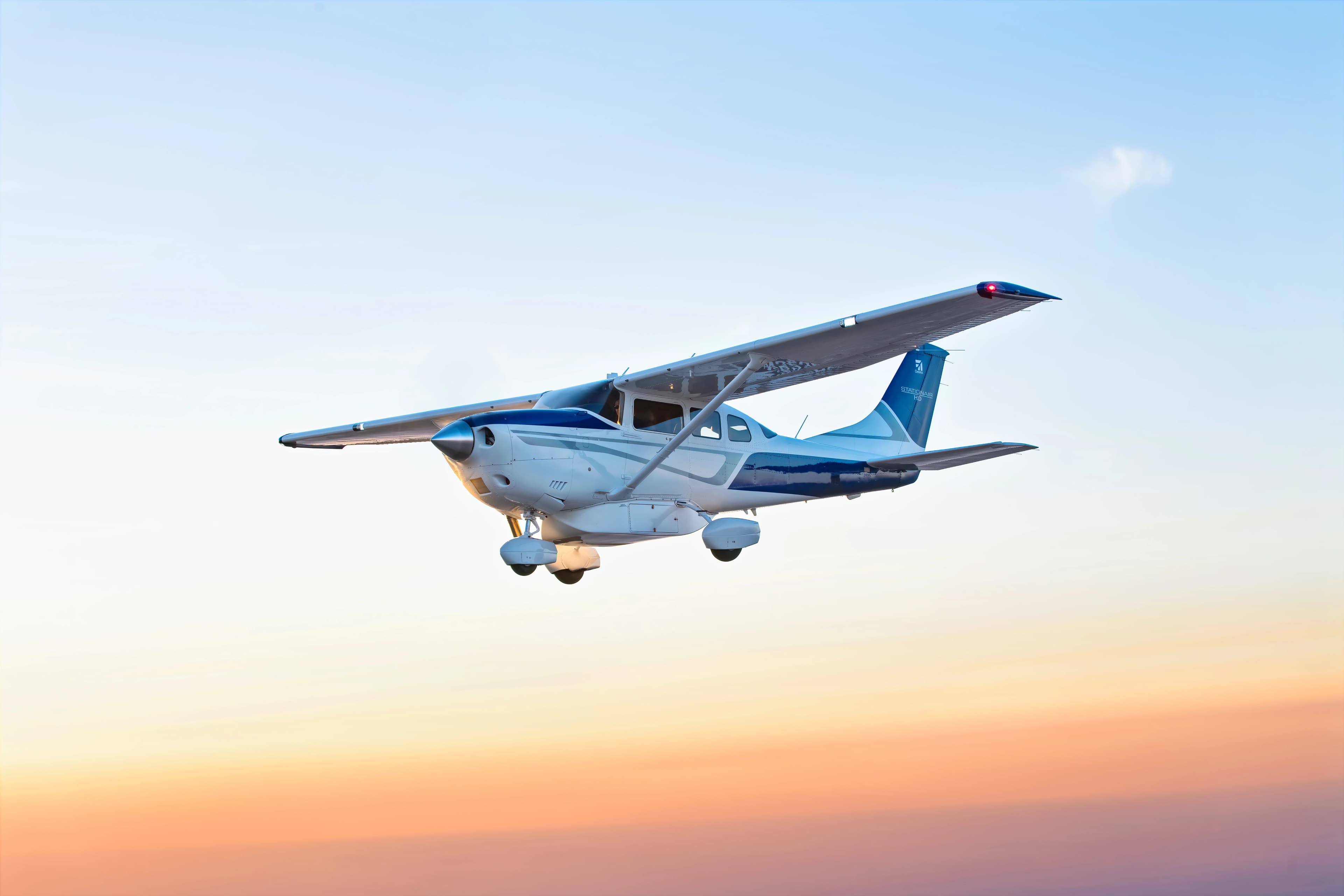

Performance in Every Environment-blurPerformance in Every Environment

Performance in Every Environment

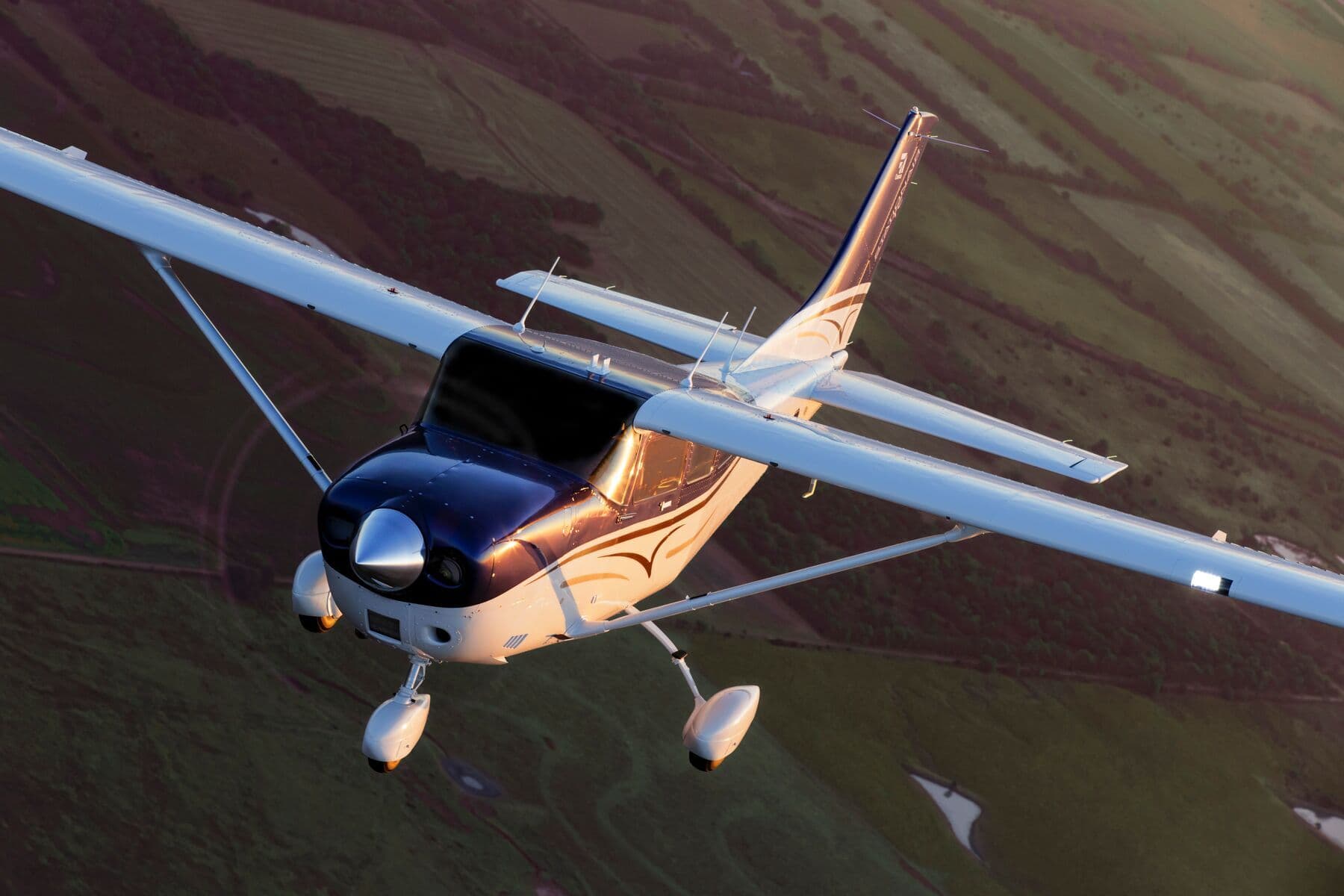

ENHANCED STABILITY-blurENHANCED STABILITY

ENHANCED STABILITY

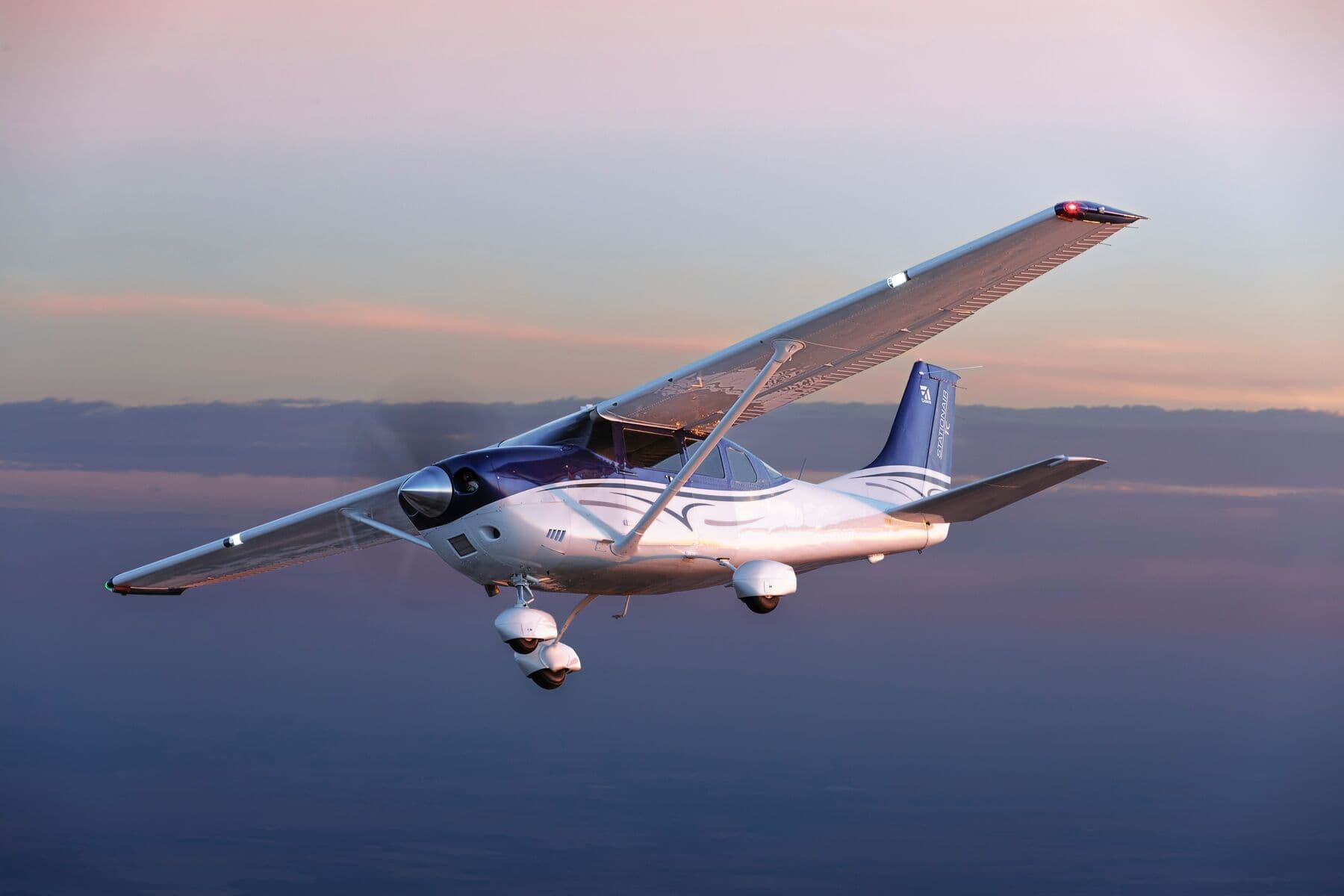

HEAVY DUTY-blurHEAVY DUTY

HEAVY DUTY

TURBOCHARGED ENGINE-blurTURBOCHARGED ENGINE

TURBOCHARGED ENGINE

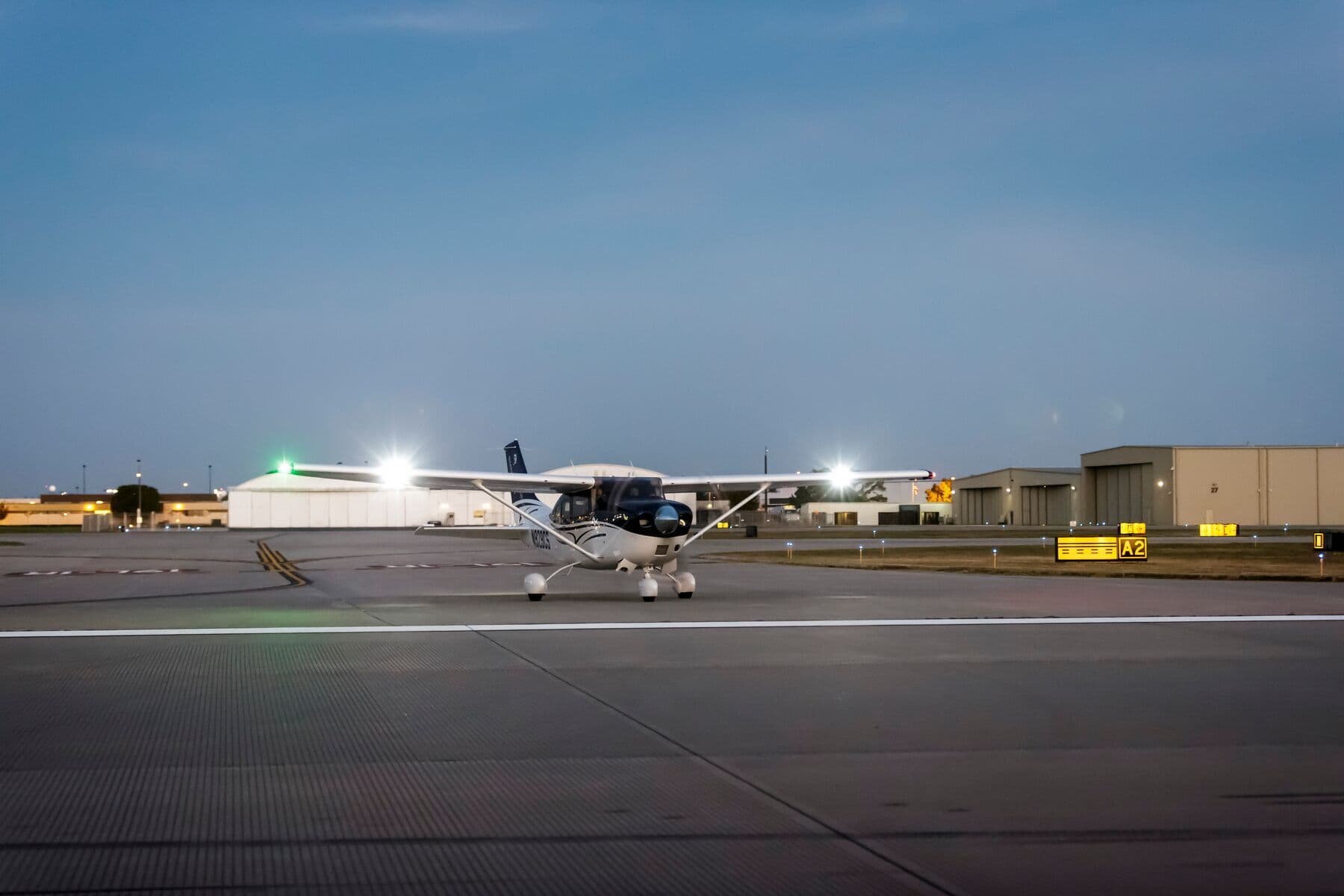

Ready for Any Mission-blurReady for Any Mission

Ready for Any Mission

Performance in Every Environment-blurPerformance in Every Environment
ENHANCED STABILITY-blurENHANCED STABILITY
HEAVY DUTY-blurHEAVY DUTY
TURBOCHARGED ENGINE-blurTURBOCHARGED ENGINE
Ready for Any Mission-blurReady for Any Mission
Play Video

Interior Tour

Play Video

Exterior Tour

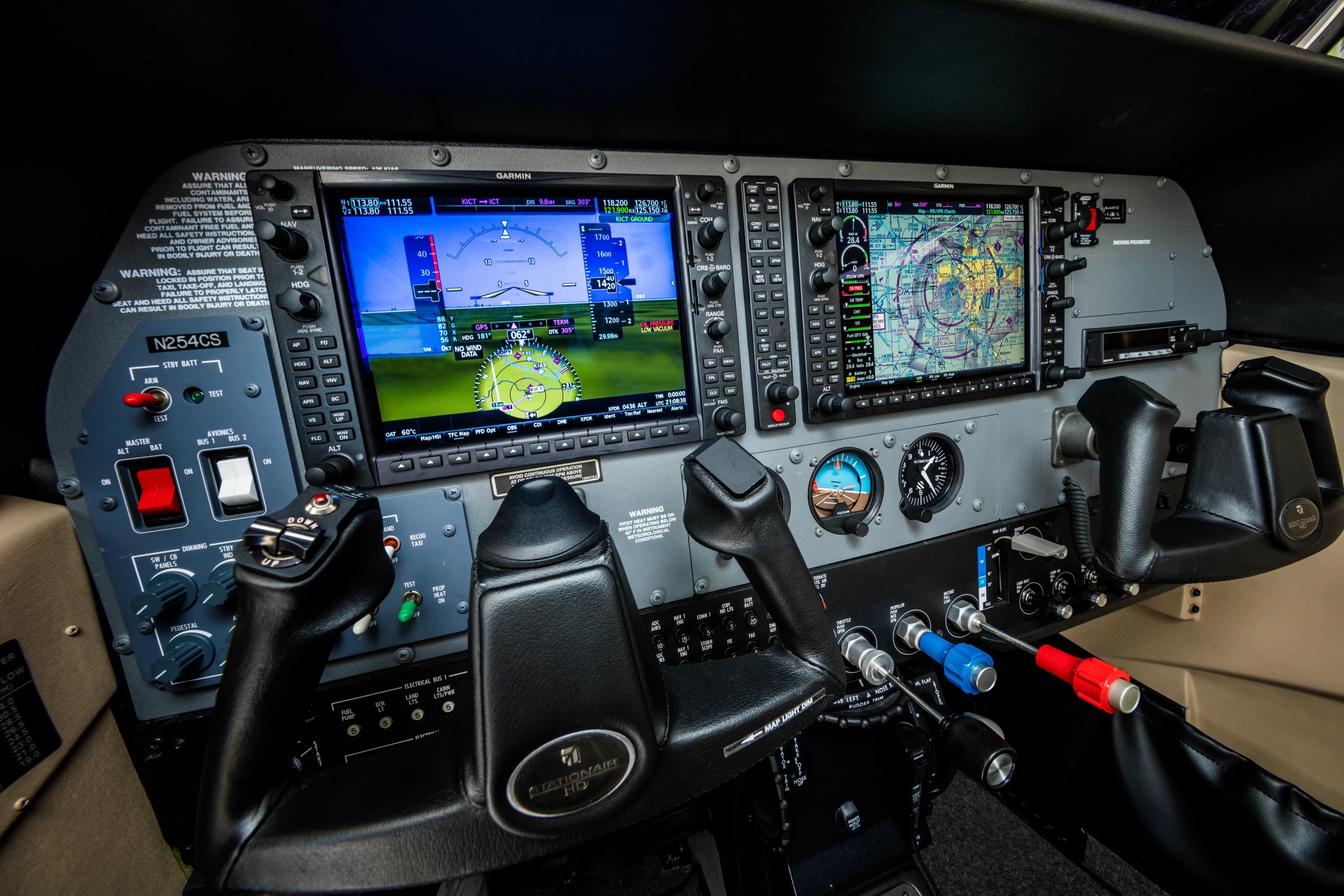

STANDARD FEATURES-blurSTANDARD FEATURES

STANDARD FEATURES

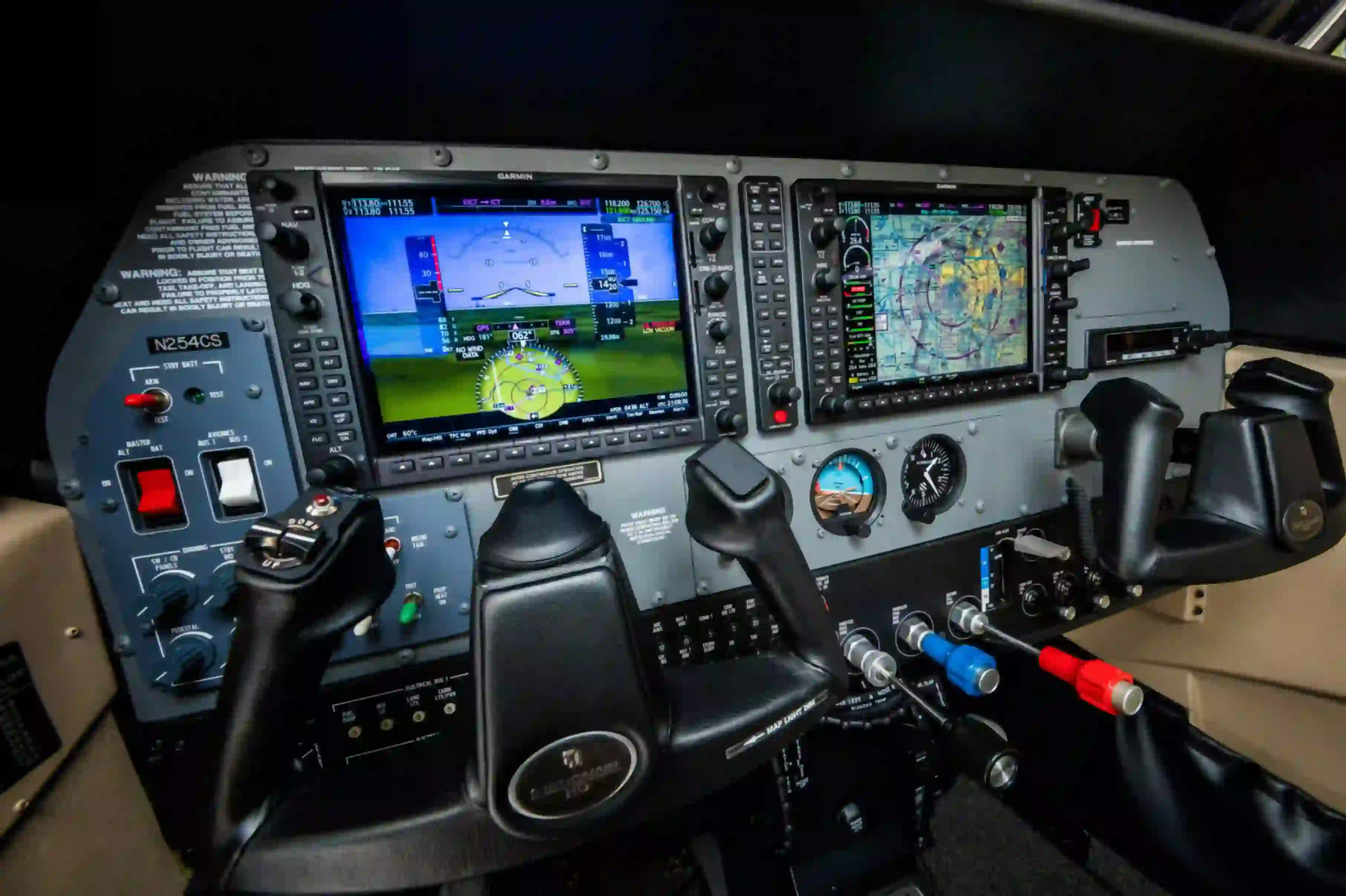

  • Garmin® GFC - 700 Autopilot

  • Garmin® Electronic Stability and Protection (ESP)

  • Garmin® Underspeed Protection (USP)

  • ADS-B out and in

  • Wireless data base and flight plan loading

  • Integrated VFR sectional charts

  • IFR high and low charts with Night Mode

  • COM frequency decoding

  • Vertical Situation Display

  • Selectable visual approaches

aerospares-bluraerospares

SPECIFICATION

DIMENSIONS

  • Length
  • Height
  • Wingspan
  • Wing Area
  • 28 ft 3 in (8.6 m)
  • 9 ft 4 in (2.8 m)
  • 36 ft (10.97 m)
  • 174 sq ft (16.17 sq m)

BAGGAGE CAPACITY

  • Weight
  • Volume
  • 180 lb (82 kg)
  • 11 cu ft (0.31 cu m)

WEIGHTS

  • Maximum Ramp Weight
  • Maximum Takeoff Weight
  • Maximum Landing Weight
  • Usable Fuel Weight
  • Usable Fuel Volume
  • Basic Empty Weight
  • Useful Load
  • Maximum Payload
  • Full Fuel Payload
  • 3,806 lb (1,726 kg)
  • 3,789 lb (1,719 kg)
  • 3,600 lb (1,633 kg)
  • 522 lb (237 kg)
  • 87 gal (329 l)
  • 2,365 lb (1,073 kg)
  • 1,441 lb (654 kg)
  • 1,235 lb (560 kg)
  • 919 lb (417 kg)

PERFORMANCE

  • Maximum Cruise Speed
  • Maximum Range
  • Takeoff Distance
  • Ground Roll
  • Landing Distance
  • Ground Roll
  • Service Ceiling
  • Maximum Climb Rate
  • Maximum Limit Speed
  • Stall Speed
  • 161 ktas (298 km/h)
  • 703 nm (1,302 km)
  • 1,970 ft (600 m)
  • 1,060 ft (323 m)
  • 1,395 ft (425 m)
  • 735 ft (224 m)
  • 26,000 ft (7,925 m)
  • 960 fpm (293 mpm)
  • 182 kias (337 km/h)
  • 57 kcas (106 km/h)

CABIN INTERIOR

  • Height
  • Width
  • Length
  • Maximum Occupants
  • 50 in (1.3 m)
  • 43 in (1.08 m)
  • 12 ft 1 in (3.7 m)
  • 6

POWERPLANT

  • Manufacturer
  • Model
  • Power Output
  • Propeller
  • Description
  • Lycoming
  • TIO-540-AJ1A
  • 310 hp (310 hp)
  • McCauley
  • 3 blade metal, constant speed

NEW FEATURES AND OPTIONS

  • Cell phone pocket in front of each seat cushion.

  • Center console – Updated with additional room for iPad

  • Cupholders on the sidewall for second row.

  • Cupholders on the floor for the third row.

  • Side pocket on lower side wall at the pilot and copilot location

  • Pilot hand hold – In the “A pillar” between the vents

  • POH pocket built into upper back of pilot and copilot seat.

  • Headset hook on side wall at the pilot and copilot location.
